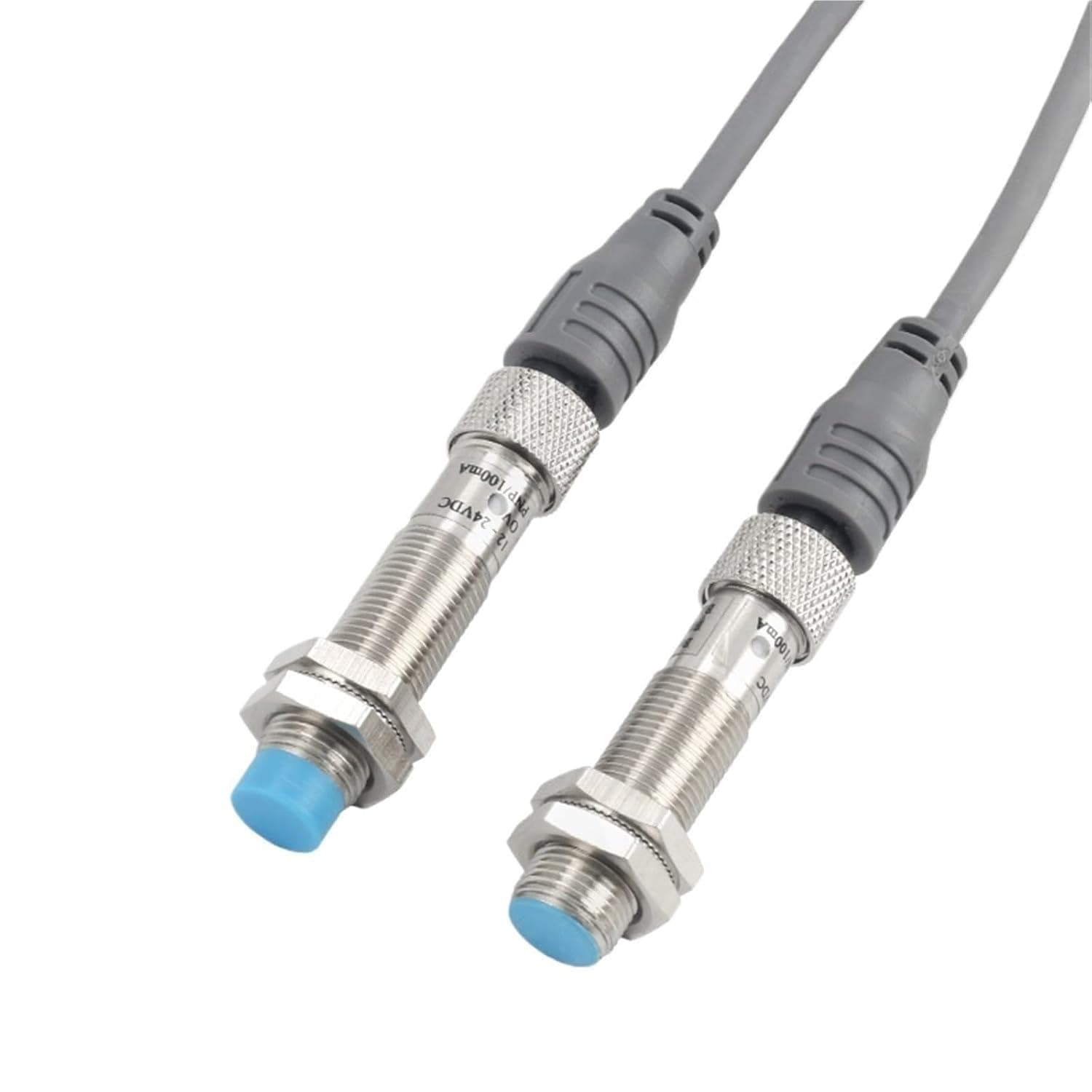

M12 Inductive Proximity Sensor IP66 DC30V 4 Pin Connector LMT12

sensor Transducers FLUSH NON-FLUSH NPN NO LMT12-3NW LMT12-4N NPN NC LMT12-3NW2 LMT12-4N2 NPN NO LMT12-3PW LMT12-4PN PNP NC LMT12-3PW2 LMT12-4P2 Mounting Flush Non-flush Short circuit Protection YES Sensing distance 3m 4mm Reverse polarity protection YES Assured distance 0...2.55mm 0...3.4mm Output indicator Red led Cylidrical Size M12*50mm M12*50mm Ambient temperature -20...70 Supply voltage 10...30 VDC(3 wire ) Ambient humidity 35-95%RH Standard target Fe 12*12*1t Switch frequency 1500 Hz Voltage Drop Vd 0.6VDC(3 wire 4 wire) Protection degree IP66 Hysteresis range 1....15%/Sr House material Nickel-copper 65 Alloy Repeat accuracy 3%/Sr Connection With connector 2m wire Load current 100mA(3 wire) Material sensing face ABS Current consumption 10mA(3 wire 4 wire)
