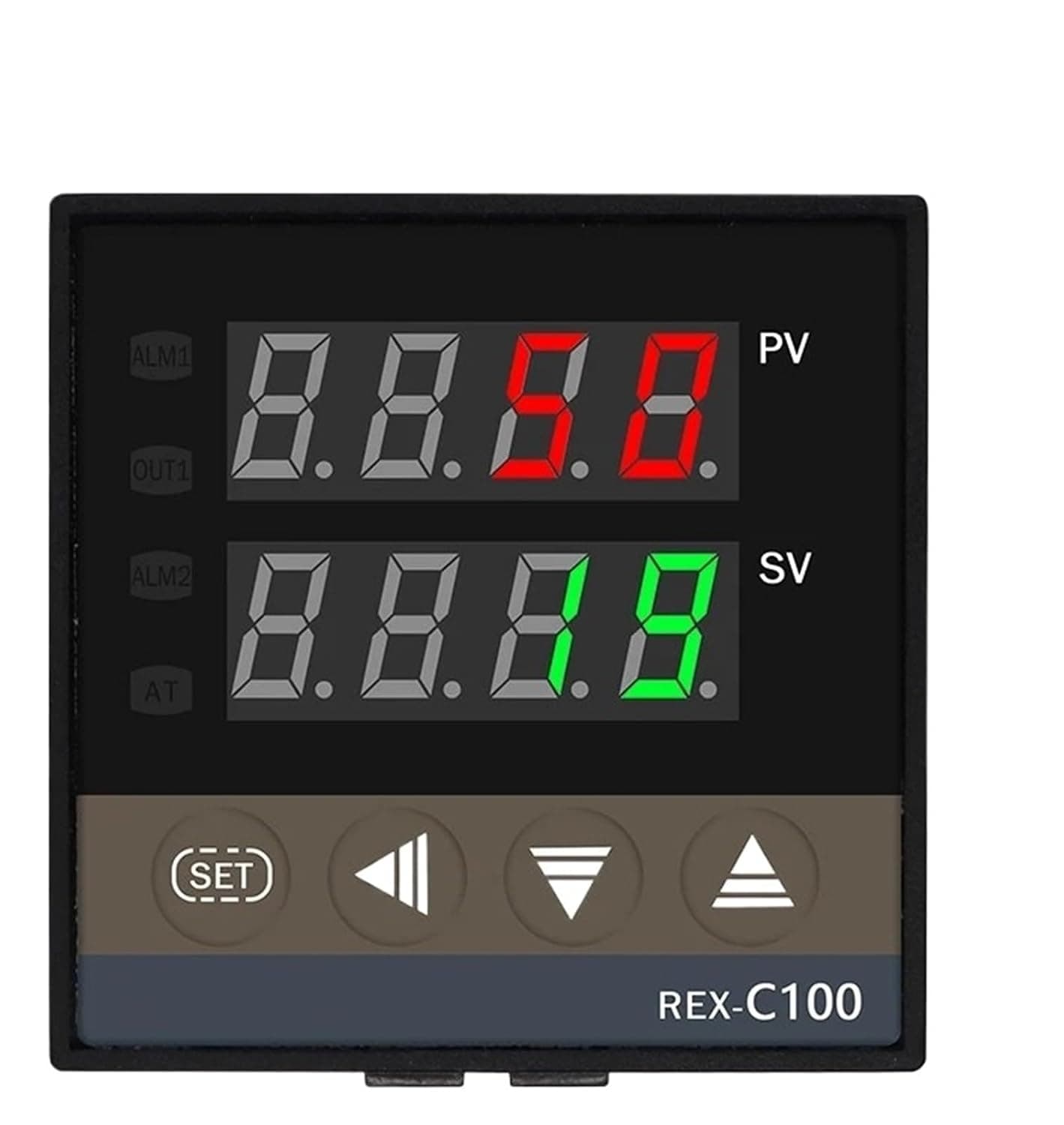

REX-C100 SSR C700 Relay Digital PID Temperature Controller Thermostat

Temperature Controllers Model No:REX-C100 SSR Range: 0 to 400 °c K Output:SSR Measuring accuracy: ±0.5%FS Cold-end compensation tolerance: ±2C can be modified by software in 0~50C Resolution: 14 bit Sampling cycle: 0.5 Sec Insulation resistance: >50M ohm(500V DC) Insulation resistance: 1500V AC/min Power Consumption: 10 VA Service environment: 0~50, environment with no corrosive gas 30~85% RH Dimensions:48 x 48 x 110 (mm) ±0.2mm Process value (PV), Setting value (SV) Output, alarm and self-tuning can be indicated by: LED PIN control (including ON/OFF, step-type PID and continuous PID) Self-tuning control REX-C700 REX-C100
